软件功能简介

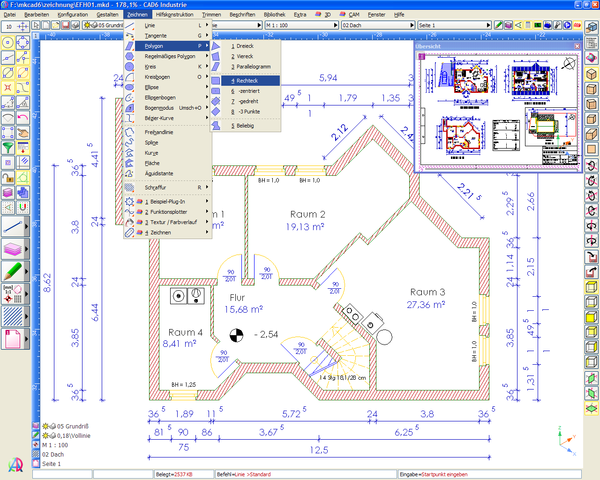

Malz++Kassner CAD6工作站是专业全功能的2D/3D CAD系列软件，支持平台包括Windows 2000/XP/2003/Vista等。CAD6 Industry版是一款针对工业使用而推出的2D/3D及CAD/CAM通用综合解决方案，它自带一款CAM插件及一款基于脚本的通用前期处理期，可以灵活高效地生成机器控制所需的CNC数据。CAD6 Studio版是一款可用于计划，构造及可视化设计的综合性软件。除了自带的2D绘制功能，它还提供了3D模型的组件构建及编辑等功能。

Malz++Kassner CAD6 is a professional CAD software for Windows that is used in all kinds of applications. It runs on Windows 7 / Vista / XP / 2000 / Server 2008 / Server 2003.

Malz++Kassner CAD6 Industry is the comprehensive 2D/3D CAD/CAM solution for industrial use. In addition to all features of CAD6 Studio the program includes a CAM plug-in and a universal, script-based post-processor for flexible and efficient generation of CNC data for machine controllers.

The CAM plug-in supports the following machining procedures: milling, drilling, turning, water jet cutting, laser cutting, cutting, plotting, and positioning.



Included are post-processors for:

Universal DIN-ISO
Siemens DIN-ISO (Milling) and (Turning) with the SINUMERIK 8XX controller
Heidenhain DIN-ISO (Milling) and (Turning) with the TNC 4XX controller
Heidenhain Klartext (Milling) with the TNC 4XX controller
DATRON milling machine CAT3D
isel NCP
HP-GL
Minimal HP-GL (using PU and PD only)

and others.

Commands like milling cutter compensation, pocket milling, milling order control, milling time calculation and a graphical 3D preview let you create drawings that are directly milled later. Extensive tool and machine settings, plus output of custom commands (such as cycles or sub-programs) by means of symbols, give you the complete control over what the post-processors finally output to the machine.

System Requirements for CAD6
General requirements Windows 7 / Vista / XP / 2000 / Server 2008 / Server 2003 (32 bit and 64 bit)
Mouse or similar input device
10-60 MB hard disk space

Recommendations for Windows XP / 2000 / Server 2003 Processor with at least 500 MHz
256 MB RAM
XGA graphics (1024×768 pixels) with 24 bits color depth and 32 MB video RAM

Recommendations for Windows 7 / Vista / Server 2008 Dual-Core Processor with at least 1 GHz
1 GB RAM
SXGA graphics (1280×1024 pixels) with 32 bits color depth and 128 MB video RAM

For attending an online training Fast internet connection (DSL) at the CAD6 workstation (download 1 Mbit/s, upload 256 Kbit/s)
Phone directly at the CAD6 workstation
